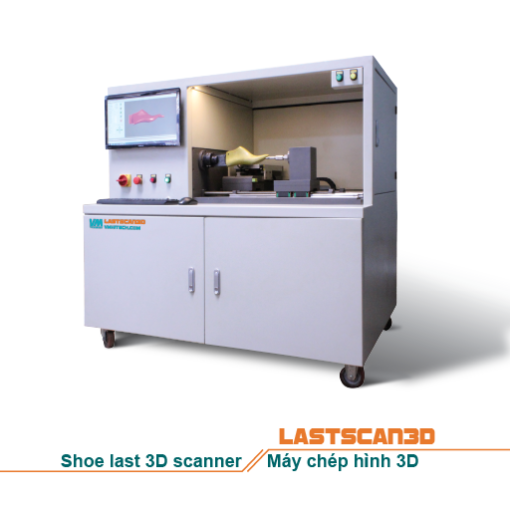

Lastscan3D – The Shoelast 3D scanner machine can generate data of the prototype last in CAD file format. The file is then transferred to CNC machine or lasts design software for further process.
- Linear resolution 0.001mm (1µm)

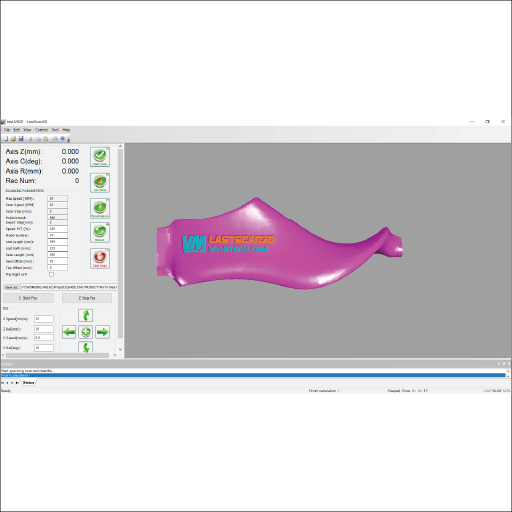

- Scanner operation system and software developed by VMHitech. Executes MOD, NC…files.
- Based on multi-thread real-time operation system, you can do other designing/editing tasks while scanning.
Lastscan3D Specifications
| Model: | LastScan3d |
|---|---|
| Max Scanning Speed: | 20 rpm |
| Scanning Pitch: | 0.5 – 2 mm |

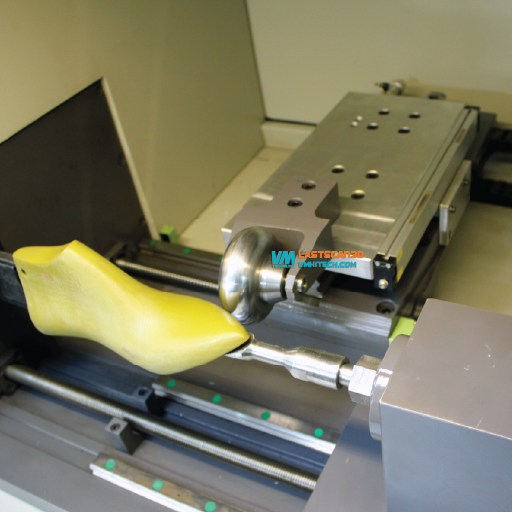

| Scanning Roller(standard): | ф84 x 32 mm |
| Linear Resolution: | 0.001 mm |
| Servo Axes: | 2 |
| Power consumption: | 1 KW |
| Power Supply: | 1 phase, 220V ± 5% |
| Air Pressure: | 4 bar |
| Dimensions: | L1400 xW1000 xH1400mm |
| Weight: | 400 kg |
