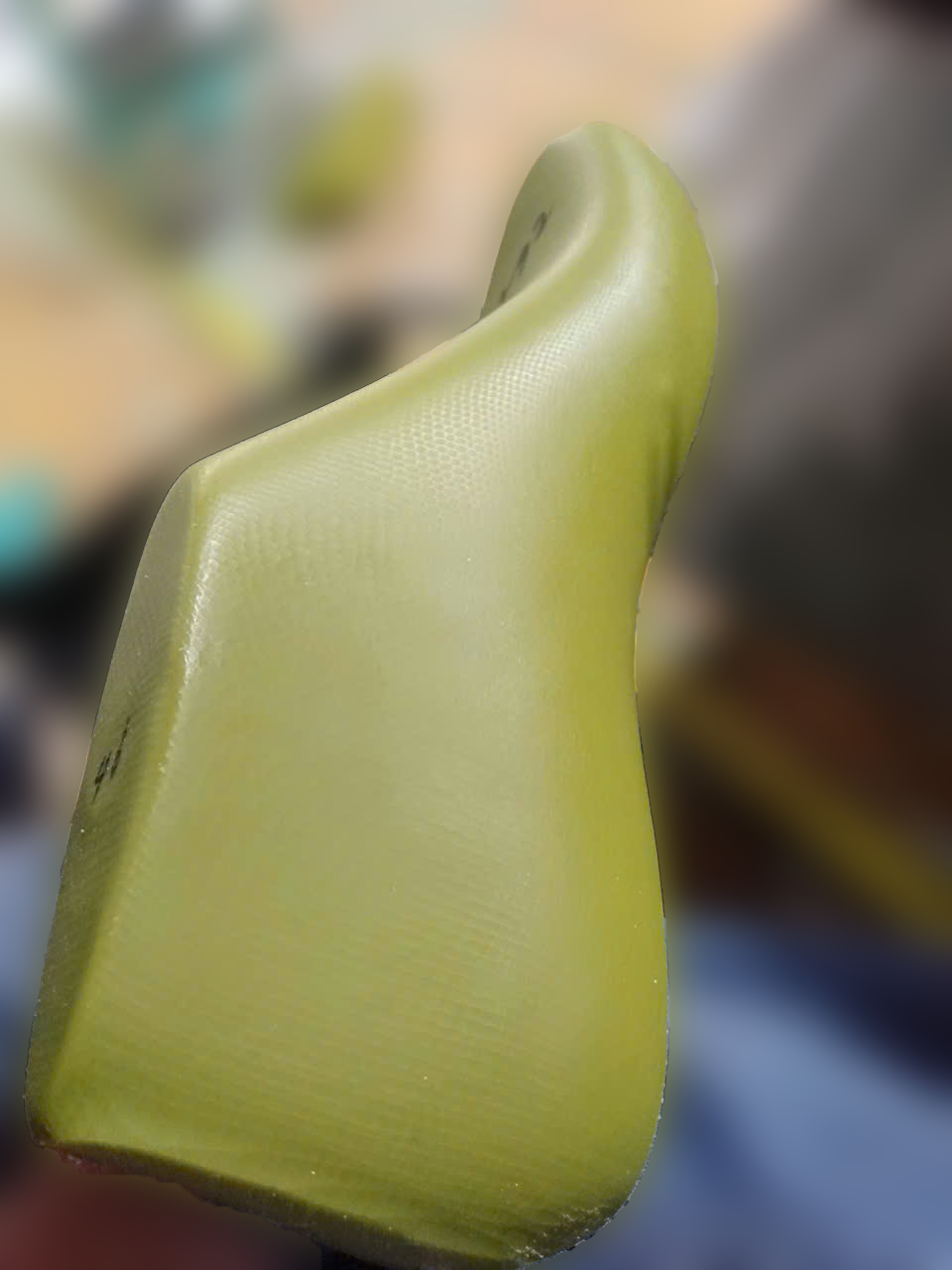

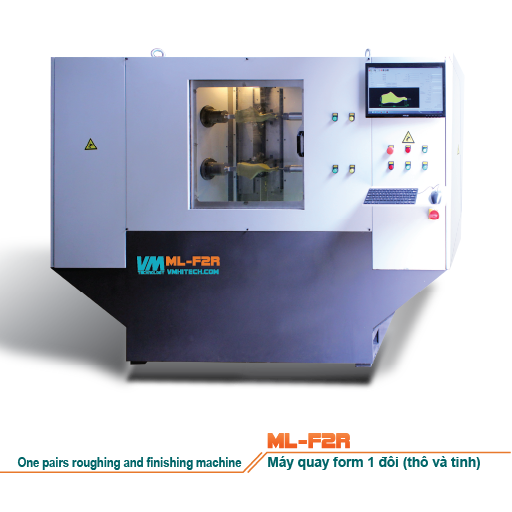

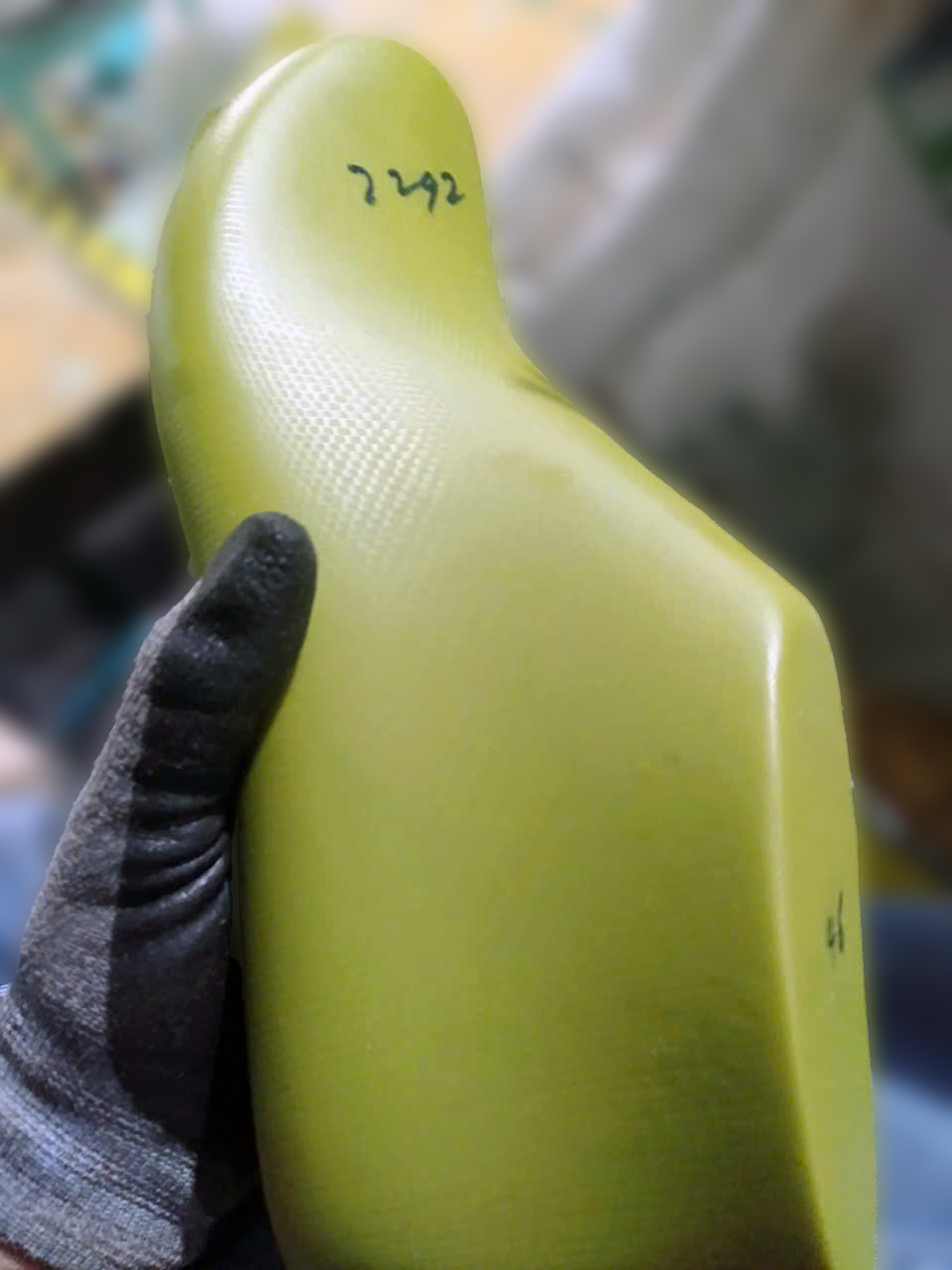

ML-F2R CNC machine can mill 1 pairs of lasts from roughing to finishing.

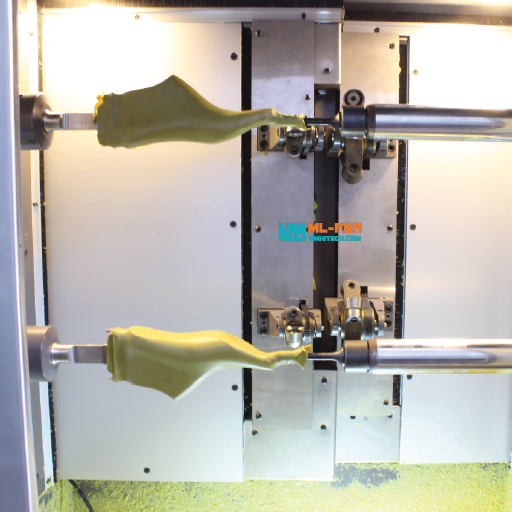

- There are 2 sets of different cutting heads: the bigger heads for roughing and the smaller heads for finishing. The machining cycles is flexible so that you can choose different working modes: only roughing (with several cutting layers) , only finishing, or both.
- CNC operation system and software developed by VMHitech. Executes MOD, NC, FRV, H2K, DG1…files.
- Based on multi-thread real-time operation system, while on cutting cycle, it can process the other sizes. That allows full sizes grading with no lag time.

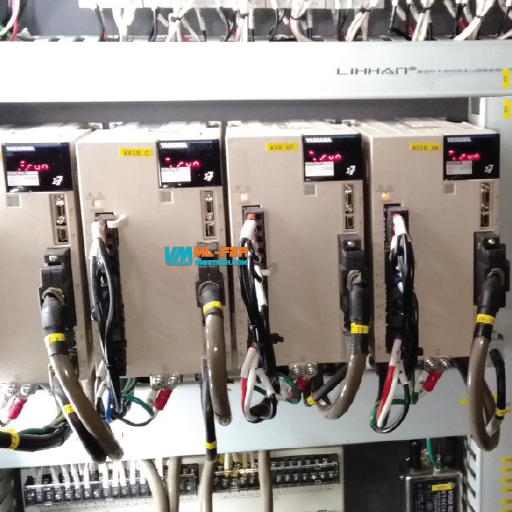

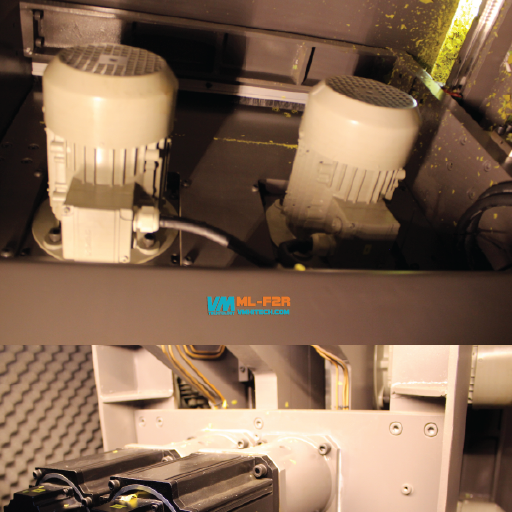

- Servo motors and drives: Yaskawa. Important parts from famous brands.
ML-F2R SPECIFICATIONS
| Model | ML-F2R |
|---|---|
| Pairs of lasts: | 1 pairs |
| Productions per hour: | 10-15 pairs/h |
| Max turnable diameter: | 250mm |
| Max length: | 450 mm |
| Roughing pitch: | 0.1-20 mm/rev |
| Finishing pitch: | 0.1-10 mm/rev |
| Lasts rotating speed: | 10-60 rpm |
| Rough Cutter heads (standard): | ф160x36 mm |
| Fine Cutter heads (standard): | ф84x32 mm |
| Servo Axes: | 4 |
| Power consumption: | 12KW |
| Incoming Voltage: | 3 phase, 380V ± 5% |
| Dimensions: | L2400 xW1550 xH1700mm |
| Weight: | 3200kg |
