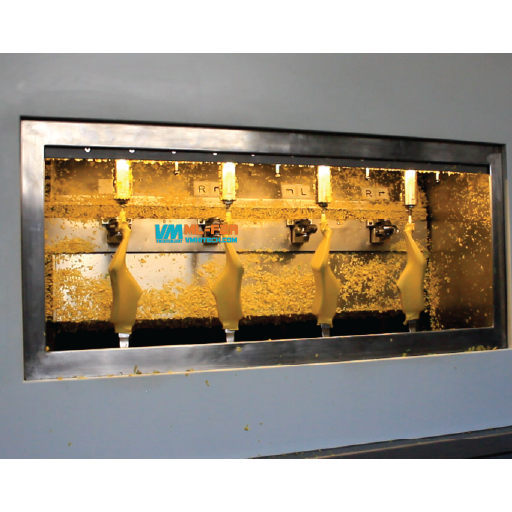

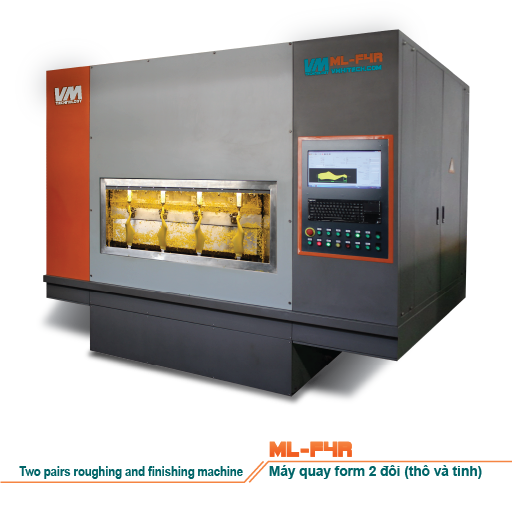

ML-F4R CNC machine can mill 2 pairs of lasts from roughing to finishing.
- There are 2 sets of different cutting heads: the bigger heads for roughing and the smaller head for finishing. The machining cycles is flexible so that you can choose different working modes: only roughing (with several cutting layers) , only finishing, or both.
- CNC operation system and software developed by VMHitech. Executes MOD, NC, FRV…files.
- Based on multi-thread real-time operation system, while on cutting cycle, it can process the other sizes. That allows full sizes grading with no lag time.
- Servo motors and drives: Yaskawa. Important parts from famous brands.
ML-F4R SPECIFICATIONS
| Model | ML-F4R |
|---|---|
| Pairs of lasts: | 2 pairs |
| Productions per hour: | 10-15 pairs/h |
| Max turnable diameter: | 250mm |
| Max length: | 450 mm |
| Roughing pitch: | 0.1-20 mm/rev |
| Finishing pitch: | 0.1-10 mm/rev |
| Lasts rotating speed: | 10-60 rpm |
| Rough Cutter heads (standard): | ф160x36 mm |
| Fine Cutter heads (standard): | ф84x32 mm |
| Servo Axes: | 4 |
| Power consumption: | 20KW |
| Incoming Voltage: | 3 phase, 380V ± 5% |
| Air Pressure: | 6bar |
| Dimensions: | L2400 xW1750 xH2300mm |
| Weight: | 5000kg |
