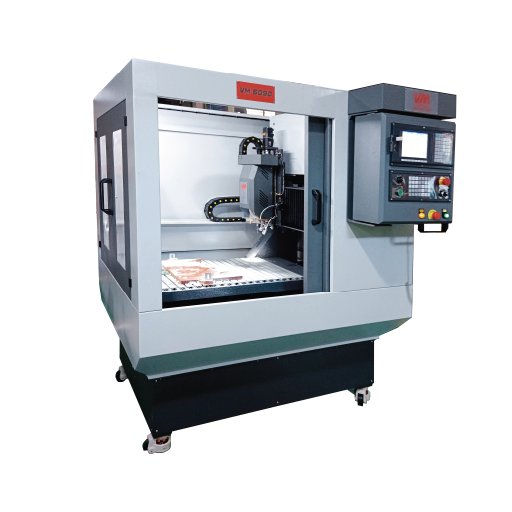

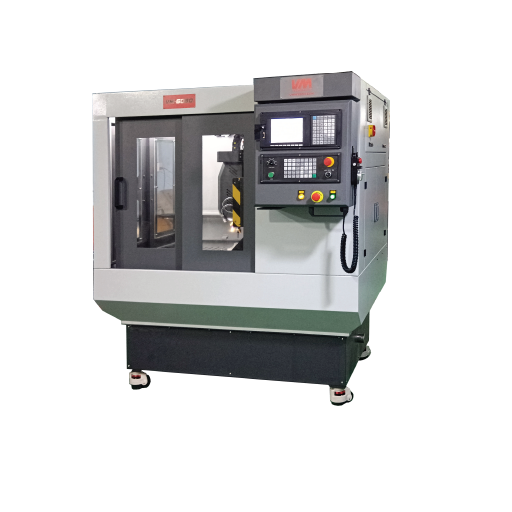

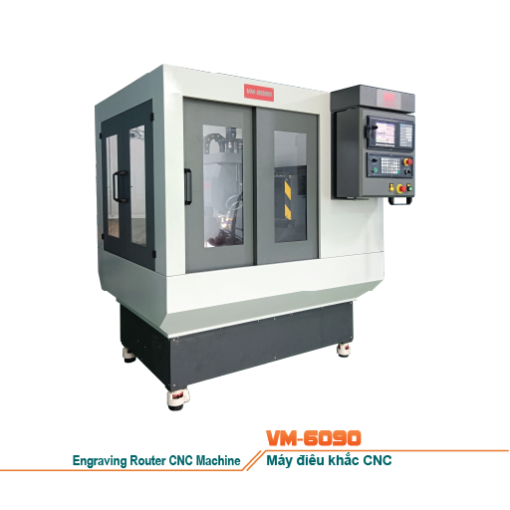

VM-6090 is a router CNC machine for engraving non-ferrous material (aluminum, copper, zinc, titanium…), and plastics or wood.

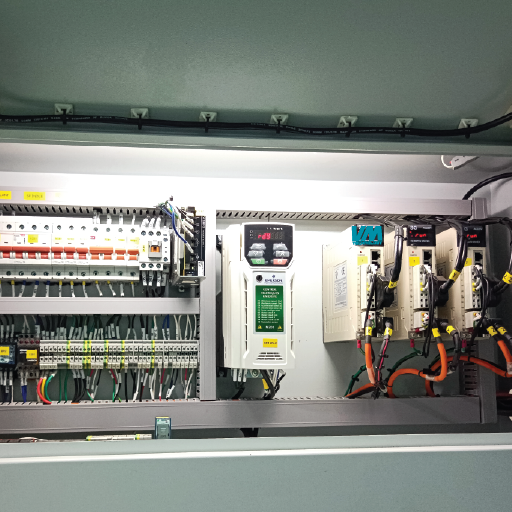

- Industrial rate CNC controller
- All servo drives and motors. Z servo with brake.

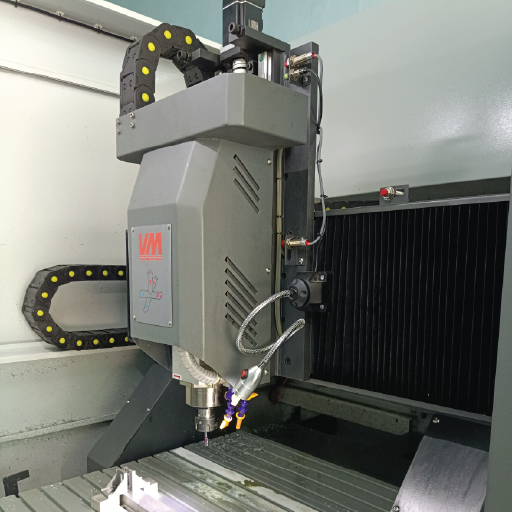

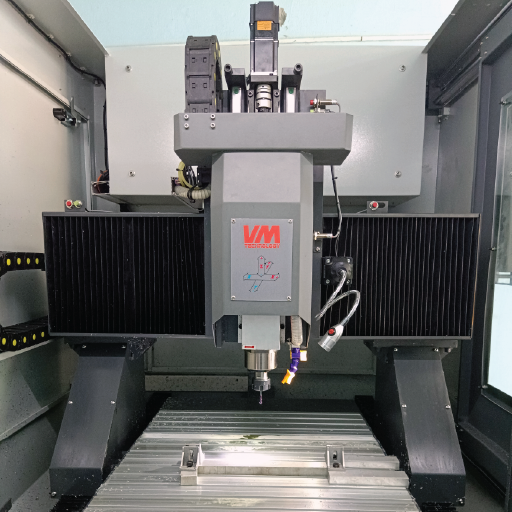

- Air cooling spindle 20000rpm
- Auto tool changer – ATC (option).
- Equipped auto lubricating system.
VM-6090 SPECIFICATIONS
| Model | VM-6090 |
|---|---|
| Travel (mm): | X: 600 Y:900 Z:250 |
| Spindle: | 5KW 20.000rpm |
| Table: | 600x900mm |
| Max length: | 450 mm |
| ATC: | option |
| Rough Cutter heads (standard): | ф160x36 mm |
| Servo Axes: | 3 |
| Power consumption: | 7KW |
| Incoming Voltage: | 3 phase, 380V ± 5% |
| Air Pressure: | 6bar |
| Dimensions: | L1650 xW1550 xH1900mm |
| Weight: | 1100kg |
